WWN Components Reference
HTML, JavaScript, Mock Page, and State Machines

HTML Components
CSS
JavaScript
Mock Page

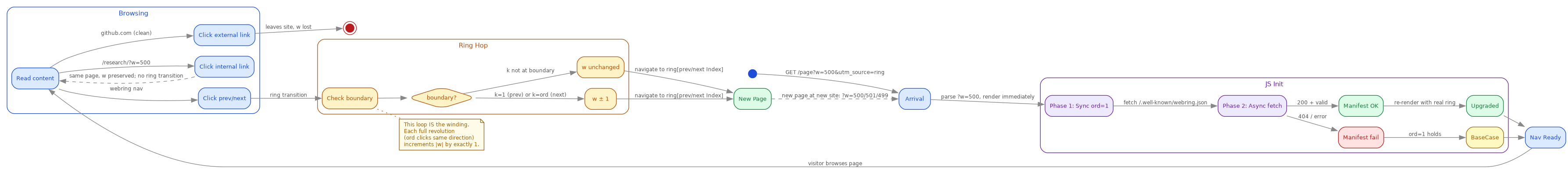

State Machines
Live State: wal.sh/?w=500
Manifest
Changelog

HTML Components

Nav Element

The only required markup. Everything else is progressive enhancement.

<nav class="webring"
     data-wwn-position="1"
     data-wwn-show-status="true"
     data-wwn-rewrite-links="true"
     aria-label="Webring navigation">
  <a id="webring-prev" rel="prev">← prev</a>
  <span id="webring-status"></span>
  <a id="webring-next" rel="next">next →</a>
  <span class="webring-info" tabindex="0" role="button"
        aria-label="What do these values mean?"
        title="n=sites in ring, p=this site's position, w=winding number (net revolutions). See: https://en.wikipedia.org/wiki/Winding_number">ⓘ</span>
</nav>
<script src="/scripts/webring.js" defer></script>

Data Attributes

Attribute	Default	Effect
`data-wwn-position`"N"=	--	Required. Declares site position (1-indexed)
`data-wwn-show-status`	`"true"`	Show/hide `p=X w=Y n=Z` status span
`data-wwn-rewrite-links`	`"true"`	Inject `?w=N` on internal same-origin links

Configuration Modes

<!-- testbed: everything on (default) -->
<nav class="webring" data-wwn-position="1"
     aria-label="Webring navigation">

<!-- production: hide status, keep link rewriting -->
<nav class="webring" data-wwn-position="1"
     data-wwn-show-status="false"
     aria-label="Webring navigation">

<!-- minimal: no status, no link rewriting -->
<nav class="webring" data-wwn-position="1"
     data-wwn-show-status="false"
     data-wwn-rewrite-links="false"
     aria-label="Webring navigation">

Absent attribute = on. Set "false" to disable. Prev/next links always work regardless of flags.

CSS

Nine lines structural. Everything else is aesthetic.

/* structural (required) */
.webring {
  display: flex;
  align-items: center;
  justify-content: center;
  gap: 1em;
  padding: 1em 0;
  margin-top: 2em;
  border-top: 1px solid #333;
}

/* aesthetic (optional) */
.webring {
  font-family: 'SF Mono', 'Menlo', 'Consolas', monospace;
  font-size: 0.85em;
  color: #999;
}
.webring a { color: #6af; text-decoration: none; }
.webring a:hover { text-decoration: underline; }
.webring a.wraparound { color: #f84; }
.webring a.wraparound::after { content: ' \21BB'; font-size: 0.7em; opacity: 0.6; }
#webring-status { font-size: 0.8em; opacity: 0.7; }
.webring-info { cursor: help; opacity: 0.5; }
.webring-info:hover, .webring-info:focus { opacity: 1; }

JavaScript

/**
 * WWN -- Webring Winding Number
 *
 * State: C = ⟨ord, k, w, t, d⟩
 *   ord (code: n) - order of cyclic group |Z_ord|
 *   k   (code: p) - element in Z_ord (1-indexed)
 *   w             - winding number (net circuits)
 *   t             - turning count (direction reversals)
 *   d             - direction (+/−, + default)
 *
 * Two phases:

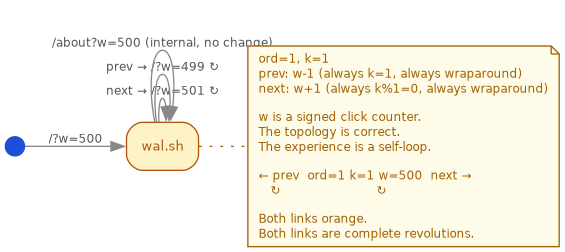

 *   1. Sync render as ord=1 (immediate, zero latency)
 *   2. Async fetch /.well-known/webring.json to upgrade
 *
 * Two data attributes control display:
 *   data-wwn-show-status="false"   → hide ord=X k=Y w=Z
 *   data-wwn-rewrite-links="false" → don't inject ?w on internal links
 *

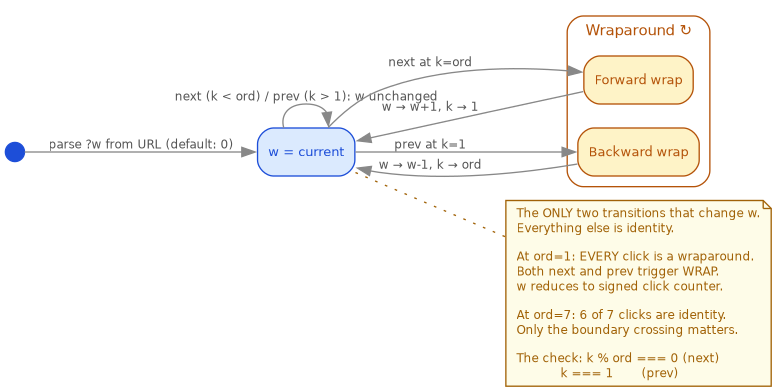

 * w changes ONLY on wraparound:
 *   next from k=ord → k=1:  w → w+1
 *   prev from k=1 → k=ord:  w → w-1
 */
(function () {
  var nav = document.querySelector('.webring[data-wwn-position]');
  if (!nav) return;

  var params = new URLSearchParams(window.location.search);
  var w = parseInt(params.get('w'), 10) || 0;
  var PORT = location.port ? ':' + location.port : '';
  var currentHost = location.hostname + PORT;

  // Read configuration from data attributes (absent = true)
  var showStatus = nav.getAttribute('data-wwn-show-status') !== 'false';
  var rewriteLinks = nav.getAttribute('data-wwn-rewrite-links') !== 'false';

  // Phase 1: sync render as n=1
  render([currentHost], currentHost);

  // Phase 2: async upgrade from manifest
  fetch('/.well-known/webring.json')
    .then(function (r) { return r.ok ? r.json() : Promise.reject(); })
    .then(function (manifest) {
      if (!manifest.ring || typeof manifest.ring !== 'string') return;
      if (!Array.isArray(manifest.members) || manifest.members.length === 0) return;
      var ring = manifest.members
        .filter(function (m) { return m && typeof m.domain === 'string'; })
        .map(function (m) { return m.domain; });
      if (ring.length > 0) render(ring, currentHost);
    })
    .catch(function () { /* base case holds */ });

  function render(ring, self) {
    var n = ring.length;
    var campaign = n > 1 ? 'literate-web' : self.replace(/[.:]/g, '-');
    var utm = 'utm_source=ring&utm_medium=webring&utm_campaign=' + campaign;

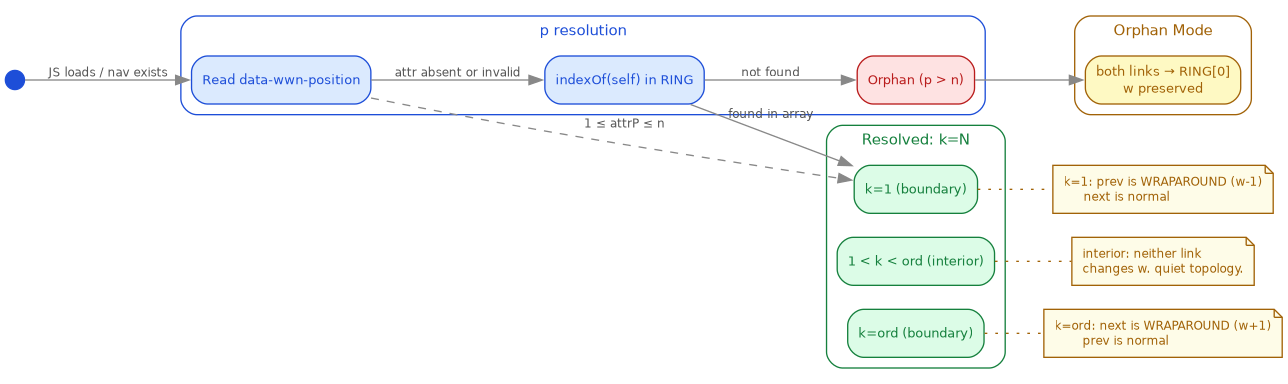

    // Position: attribute is authority, indexOf is fallback
    var attrP = parseInt(nav.getAttribute('data-wwn-position'), 10);
    var detectedIndex = ring.indexOf(self);
    var p = (Number.isInteger(attrP) && attrP >= 1 && attrP <= n)
      ? attrP
      : (detectedIndex !== -1) ? (detectedIndex + 1)
      : attrP;

    var status = document.getElementById('webring-status');
    var prev = document.getElementById('webring-prev');
    var next = document.getElementById('webring-next');
    var scheme = location.protocol + '//';

    // Orphan: site not in ring
    if (!Number.isInteger(p) || p < 1 || p > n) {
      var entry = scheme + ring[0] + '/?w=' + w + '&' + utm;
      if (status && showStatus) {
        status.textContent = 'p=' + (attrP || '?') + ' w=' + w + ' n=' + n + ' (not in ring)';
      }
      if (prev) { prev.href = entry; prev.textContent = '\u2190 enter ring'; }
      if (next) { next.href = entry; next.textContent = 'enter ring \u2192'; }
      return;
    }

    // Wraparound-only w
    var prevIndex = (p - 2 + n) % n;
    var nextIndex = p % n;
    var prevW = w - (p === 1 ? 1 : 0);
    var nextW = w + (p % n === 0 ? 1 : 0);

    var prevHref = scheme + ring[prevIndex] + '/?w=' + prevW + '&' + utm;
    var nextHref = scheme + ring[nextIndex] + '/?w=' + nextW + '&' + utm;

    if (status && showStatus) {
      status.textContent = 'p=' + p + ' w=' + w + ' n=' + n;
    }
    if (prev) {
      prev.href = prevHref;
      prev.classList.toggle('wraparound', p === 1);
    }
    if (next) {
      next.href = nextHref;
      next.classList.toggle('wraparound', p === n);
    }

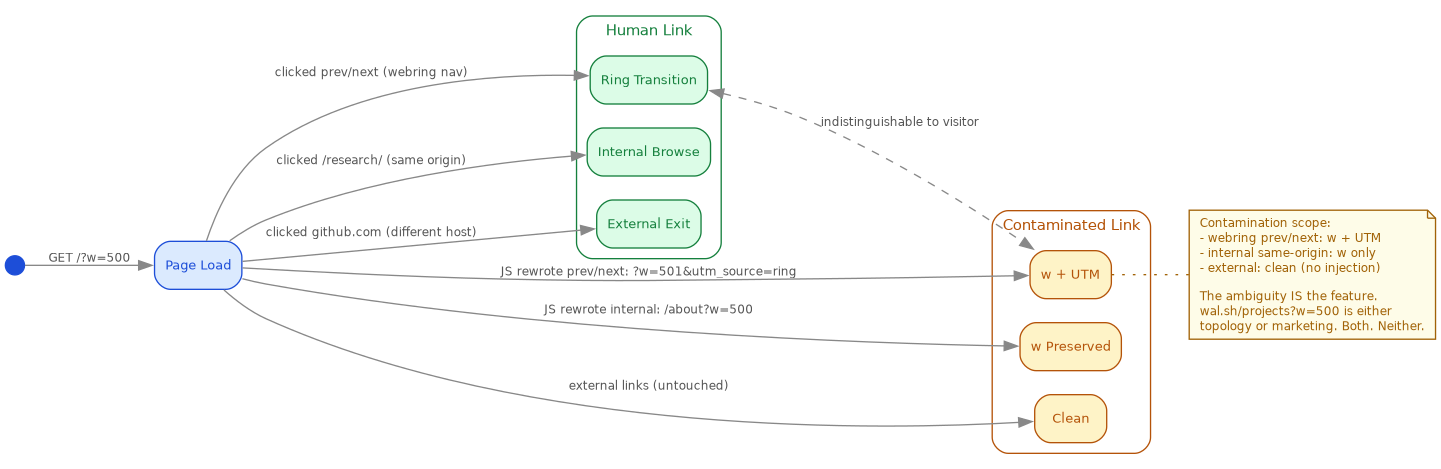

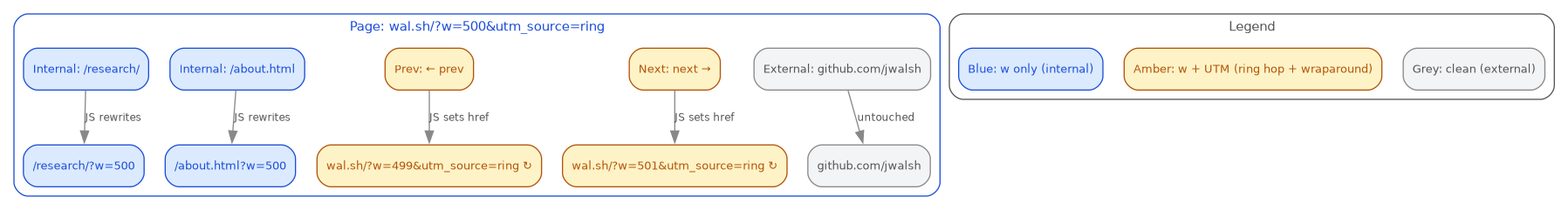

    // Internal link rewriting (if enabled)
    if (!rewriteLinks) return;
    var links = document.querySelectorAll('a[href]');
    for (var i = 0; i < links.length; i++) {
      var link = links[i];
      if (link.id === 'webring-prev' || link.id === 'webring-next') continue;
      try {
        var url = new URL(link.href, location.href);
        if (url.host !== location.host) continue;
        url.searchParams.set('w', w);
        link.href = url.toString();
      } catch (e) {}
    }
  }
})();

Mock Page

A self-contained test page. Open in browser, append ?w=500 to URL.

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1">
<title>wal.sh -- mock</title>
<style>
  :root { --bg: #111; --fg: #ccc; --accent: #6af; }
  * { margin: 0; padding: 0; box-sizing: border-box; }
  body { font-family: system-ui, sans-serif; background: var(--bg); color: var(--fg); max-width: 42em; margin: 0 auto; padding: 2em; }
  h1 { font-size: 1.4em; margin-bottom: 0.5em; }
  h1 a { color: var(--accent); text-decoration: none; }
  nav.site { margin-bottom: 2em; font-size: 0.9em; }
  nav.site a { color: var(--accent); text-decoration: none; margin-right: 1em; }
  section { margin-bottom: 2em; line-height: 1.6; }
  ul { padding-left: 1.5em; }
  li { margin-bottom: 0.3em; }
  a { color: var(--accent); }
  .meta { font-size: 0.75em; opacity: 0.5; margin-top: 3em; }

  /* webring structural */
  .webring {
    display: flex;
    align-items: center;
    justify-content: center;
    gap: 1em;
    padding: 1em 0;
    margin-top: 2em;
    border-top: 1px solid #333;
    font-family: 'SF Mono', 'Menlo', 'Consolas', monospace;
    font-size: 0.85em;
    color: #999;
  }
  .webring a { color: #6af; text-decoration: none; }
  .webring a:hover { text-decoration: underline; }
  .webring a.wraparound { color: #f84; }
  .webring a.wraparound::after { content: ' \21BB'; font-size: 0.7em; opacity: 0.6; }
  #webring-status { font-size: 0.8em; opacity: 0.7; }
  .webring-info { cursor: help; opacity: 0.5; }
  .webring-info:hover, .webring-info:focus { opacity: 1; }
</style>
</head>
<body>

<h1><a href="/">wal.sh</a></h1>
<nav class="site">
  <a href="/">Home</a>
  <a href="/research/">Research</a>
  <a href="/events/">Events</a>
  <a href="/about.html">About</a>
</nav>

<section>
  <h2>current focus</h2>
  <ul>
    <li><a href="/research/2026-agent-isolation-freebsd-jails/">agent isolation with freebsd jails</a></li>
    <li><a href="/research/2026-elenctic-vibe-code-review/">elenctic vibe code review</a></li>
    <li><a href="/research/tla-plus-system-design/">tla+ system design</a></li>
  </ul>
</section>

<section>
  <h2>2025</h2>
  <ul>
    <li><a href="/research/ads-b/">ads-b flight tracking</a> -- sdr receiver 0.8km from logan</li>
    <li><a href="/research/unix-v4/">unix v4</a> -- booting 1973 unix on simh/freebsd</li>
    <li><a href="https://github.com/jwalsh/repolens">repolens</a> -- repository analysis</li>
  </ul>
</section>

<p class="meta">build: 2026-02-07 12:02 | sha: 1ce88dd</p>

<!-- ================================================ -->
<!-- WEBRING: the only required addition to any page  -->
<!-- ================================================ -->
<nav class="webring"
     data-wwn-position="1"
     data-wwn-show-status="true"
     data-wwn-rewrite-links="true"
     aria-label="Webring navigation">
  <a id="webring-prev" rel="prev">← prev</a>
  <span id="webring-status"></span>
  <a id="webring-next" rel="next">next →</a>
  <span class="webring-info" tabindex="0" role="button"
        aria-label="What do these values mean?"
        title="n=sites in ring, p=this site's position, w=winding number (net revolutions)">ⓘ</span>
</nav>

<script>
// Inline for mock page -- production uses <script src="/scripts/webring.js" defer>
(function () {
  var nav = document.querySelector('.webring[data-wwn-position]');
  if (!nav) return;

  var params = new URLSearchParams(window.location.search);
  var w = parseInt(params.get('w'), 10) || 0;
  var PORT = location.port ? ':' + location.port : '';
  var currentHost = location.hostname + PORT;
  var showStatus = nav.getAttribute('data-wwn-show-status') !== 'false';
  var rewriteLinks = nav.getAttribute('data-wwn-rewrite-links') !== 'false';

  render([currentHost], currentHost);

  fetch('/.well-known/webring.json')
    .then(function (r) { return r.ok ? r.json() : Promise.reject(); })
    .then(function (manifest) {
      if (!manifest.ring || typeof manifest.ring !== 'string') return;
      if (!Array.isArray(manifest.members) || manifest.members.length === 0) return;
      var ring = manifest.members
        .filter(function (m) { return m && typeof m.domain === 'string'; })
        .map(function (m) { return m.domain; });
      if (ring.length > 0) render(ring, currentHost);
    })
    .catch(function () {});

  function render(ring, self) {
    var n = ring.length;
    var campaign = n > 1 ? 'literate-web' : self.replace(/[.:]/g, '-');
    var utm = 'utm_source=ring&utm_medium=webring&utm_campaign=' + campaign;
    var attrP = parseInt(nav.getAttribute('data-wwn-position'), 10);
    var detectedIndex = ring.indexOf(self);
    var p = (Number.isInteger(attrP) && attrP >= 1 && attrP <= n)
      ? attrP
      : (detectedIndex !== -1) ? (detectedIndex + 1) : attrP;

    var status = document.getElementById('webring-status');
    var prev = document.getElementById('webring-prev');
    var next = document.getElementById('webring-next');
    var scheme = location.protocol + '//';

    if (!Number.isInteger(p) || p < 1 || p > n) {
      var entry = scheme + ring[0] + '/?w=' + w + '&' + utm;
      if (status && showStatus) status.textContent = 'p=' + (attrP || '?') + ' w=' + w + ' n=' + n + ' (not in ring)';
      if (prev) { prev.href = entry; prev.textContent = '\u2190 enter ring'; }
      if (next) { next.href = entry; next.textContent = 'enter ring \u2192'; }
      return;
    }

    var prevIndex = (p - 2 + n) % n;
    var nextIndex = p % n;
    var prevW = w - (p === 1 ? 1 : 0);
    var nextW = w + (p % n === 0 ? 1 : 0);

    if (status && showStatus) status.textContent = 'p=' + p + ' w=' + w + ' n=' + n;
    if (prev) { prev.href = scheme + ring[prevIndex] + '/?w=' + prevW + '&' + utm; prev.classList.toggle('wraparound', p === 1); }
    if (next) { next.href = scheme + ring[nextIndex] + '/?w=' + nextW + '&' + utm; next.classList.toggle('wraparound', p === n); }

    if (!rewriteLinks) return;
    var links = document.querySelectorAll('a[href]');
    for (var i = 0; i < links.length; i++) {
      var link = links[i];
      if (link.id === 'webring-prev' || link.id === 'webring-next') continue;
      try {
        var url = new URL(link.href, location.href);
        if (url.host !== location.host) continue;
        url.searchParams.set('w', w);
        link.href = url.toString();
      } catch (e) {}
    }
  }
})();
</script>

</body>
</html>

The "squid" is the visitor's cursor – the head of the curve being wound around the ring. Each link on a page is either human (the visitor clicked it intentionally) or collected/contaminated (it carries ?w=N injected by the JS). The visitor can't tell which is which. That's the joke.

Site: Position State (p)

Position is fixed per-site. It doesn't change during a session. What changes is which site the squid is on.

Ring: Winding State (w)

The core state machine. This is \(\pi_1(S^1) \cong \mathbb{Z}\) realized as a URL parameter.

Combined: Full Navigation Flow

The complete picture: squid arrives, JS resolves position, visitor navigates, w changes (or doesn't) on wraparound.

Degenerate Case: ord=1 (Production wal.sh)

At ord=1, the ring collapses. Both prev and next point to self. Every click is a wraparound. The state machine simplifies to:

Link Contamination Scope

Which links get which parameters. The key insight: w and UTM have different scopes and different lifetimes.

Live State: wal.sh/?w=500

What the production site looks like with the current URL:

Field	Value	Derivation
`w`	500	Parsed from `?w=500`
`ord`	1	RING = [wal.sh], manifest has no members
`k`	1	data-wwn-position="1"
prev →	499	k=1 → wraparound, w-1
next →	501	k%1=0 → wraparound, w+1
↻	both	every click at ord=1 is a wraparound

The visitor has completed 500 net forward revolutions around a ring of 1. Mathematically: the curve has wound 500 times around the single point. Experientially: someone clicked "next" a lot.

When ord grows to 2 (add a second site), the same w=500 means they've gone around 500 times but now each revolution takes 2 clicks. That's 1000 clicks minimum. The winding number scales inversely with ring size.

Manifest

What /.well-known/webring.json currently serves (ord=1):

{
  "id": "wal",
  "name": "wal.sh",
  "ring": "literate-web"
}

What it would serve at ord=3:

{
  "id": "wal",
  "name": "wal.sh",
  "ring": "literate-web",
  "version": 1,
  "members": [
    {"domain": "wal.sh", "name": "Jason Walsh"},
    {"domain": "termbox.org", "name": "Termbox"},
    {"domain": "jwalsh.net", "name": "JWalsh.net"}
  ]
}

Position is array order. No position field. Reordering the array reorders the ring. Trust is editorial: you added them. #+end_src

Changelog

Date	Change
2026-02-07	Initial: HTML, CSS, JS, mock page, 6 Mermaid diagrams

WWN Components Reference

WWN Components Reference
HTML, JavaScript, Mock Page, and State Machines

Table of Contents

HTML Components

Nav Element

Data Attributes

Configuration Modes

CSS

JavaScript

Mock Page

State Machines

Squid: Visitor Link Classification

Site: Position State (p)

Ring: Winding State (w)

Combined: Full Navigation Flow

Degenerate Case: ord=1 (Production wal.sh)

Link Contamination Scope

Live State: wal.sh/?w=500

Manifest

Changelog

WWN Components Reference HTML, JavaScript, Mock Page, and State Machines

Table of Contents

WWN Components Reference
HTML, JavaScript, Mock Page, and State Machines
