Overview

The dataLayer is a JavaScript object that serves as a structured communication layer between a website and Google Tag Manager (GTM). It provides a standardized schema for passing analytics data, event information, and contextual variables to GTM, which then routes this data to various marketing and analytics platforms. This research explores schema design patterns, implementation strategies, and best practices for building maintainable, type-safe dataLayer architectures.

Background

Google Tag Manager introduced the dataLayer concept to decouple tracking implementation from marketing tag configuration. Prior to this, analytics tracking required direct integration of vendor-specific JavaScript snippets throughout application code. The dataLayer abstraction allows developers to push structured data without knowledge of downstream consumers, while marketing teams configure tag firing rules independently.

The dataLayer is fundamentally an array that accepts object pushes, with GTM merging these objects into a persistent data model. This architecture supports both page-load data population and dynamic event tracking throughout the user session.

Key Concepts

dataLayer Schema Design

A well-designed dataLayer schema provides consistency across an organization:

// Enhanced E-commerce schema example
window.dataLayer = window.dataLayer || [];
dataLayer.push({
  event: 'purchase',
  ecommerce: {
    transaction_id: 'T12345',
    value: 59.99,
    currency: 'USD',
    items: [{
      item_id: 'SKU001',
      item_name: 'Product Name',
      category: 'Category/Subcategory',
      price: 29.99,
      quantity: 2
    }]
  }
});

Event Taxonomy

Standardized event naming conventions improve maintainability:

Page events: page_view, virtual_page_view
User actions: click, scroll, form_submit, video_play
E-commerce: view_item, add_to_cart, begin_checkout, purchase
Custom events: Use namespaced prefixes like app.feature.action

Type Safety with TypeScript

interface DataLayerEvent {
  event: string;
  [key: string]: unknown;
}

interface PurchaseEvent extends DataLayerEvent {
  event: 'purchase';
  ecommerce: {
    transaction_id: string;
    value: number;
    currency: string;
    items: EcommerceItem[];
  };
}

declare global {
  interface Window {
    dataLayer: DataLayerEvent[];
  }
}

Implementation

Initialization Pattern

// Initialize before GTM container loads
window.dataLayer = window.dataLayer || [];

// Page-level data (available immediately)
dataLayer.push({
  pageType: 'product',
  pageCategory: 'electronics',
  userId: 'user_hash_123',
  userLoggedIn: true
});

Event Helper Functions

const trackEvent = (eventName, eventParams = {}) => {
  window.dataLayer.push({
    event: eventName,
    ...eventParams,
    timestamp: new Date().toISOString()
  });
};

// Usage
trackEvent('button_click', {
  buttonId: 'cta-signup',
  buttonText: 'Sign Up Now',
  pageSection: 'hero'
});

Data Layer Validation

Implement runtime validation to catch schema violations:

const validatePurchaseEvent = (event) => {
  const required = ['transaction_id', 'value', 'currency', 'items'];
  const missing = required.filter(key => !event.ecommerce?.[key]);
  if (missing.length) {
    console.warn(`Purchase event missing: ${missing.join(', ')}`);
    return false;
  }
  return true;
};

References

Google Tag Manager Developer Guide
GA4 E-commerce Implementation
Simo Ahava's Blog - GTM and analytics deep dives
W3C Customer Experience Digital Data Layer

Notes

Consider using a tag management abstraction layer for vendor-agnostic tracking
Implement dataLayer debugging tools for development environments
Document schema changes and maintain version compatibility
Use GTM preview mode extensively during development
Consider privacy implications and consent management integration

Schema format comparison

The dataLayer schema problem generalizes: a single logical entity is expressed in many formats (JSON Schema, SQL DDL, Avro, Protobuf), each with different evolution rules, type systems, and tooling.

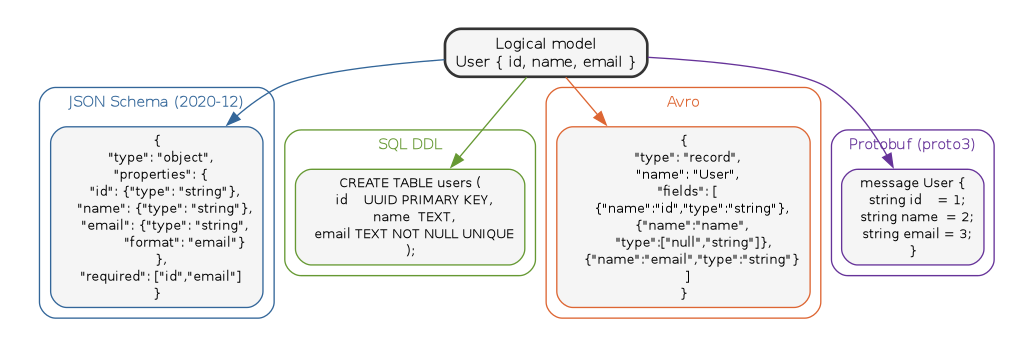

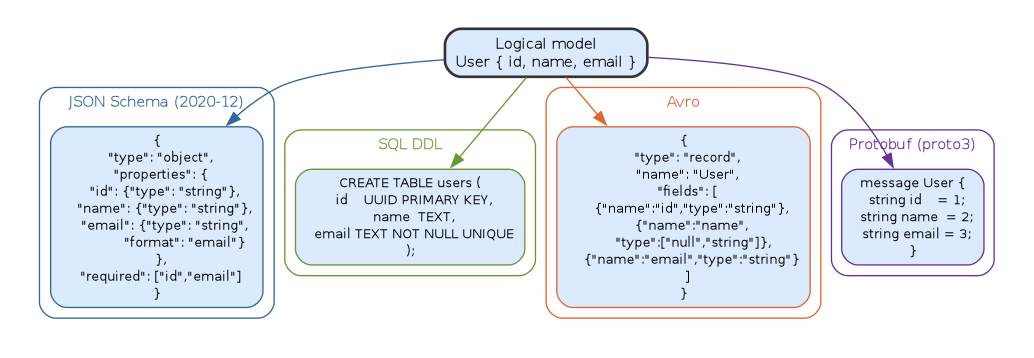

Listing 1: One logical model expressed in four schema formats

// Schema format comparison — one logical entity, four serializations
digraph schema_compare {
    rankdir=TB;
    graph [bgcolor="white", fontname="Helvetica", fontsize=11,
           pad="0.3", nodesep="0.3", ranksep="0.5"];
    node  [shape=box, style="rounded,filled", fontname="Helvetica",
           fontsize=10, fillcolor="#f5f5f5", color="#888"];
    edge  [color="#aaa"];

    logical [label="Logical model\nUser { id, name, email }",
             shape=box, style="rounded,filled,bold",
             fillcolor="#f5f5f5", color="#333", fontsize=11];

    subgraph cluster_json {
        label="JSON Schema (2020-12)";
        color="#369"; fontcolor="#369"; style="rounded";
        json [label="{\n  \"type\": \"object\",\n  \"properties\": {\n    \"id\": {\"type\": \"string\"},\n    \"name\": {\"type\": \"string\"},\n    \"email\": {\"type\": \"string\",\n              \"format\": \"email\"}\n  },\n  \"required\": [\"id\",\"email\"]\n}",
               color="#369"];
    }

    subgraph cluster_sql {
        label="SQL DDL";
        color="#693"; fontcolor="#693"; style="rounded";
        sql [label="CREATE TABLE users (\n  id    UUID PRIMARY KEY,\n  name  TEXT,\n  email TEXT NOT NULL UNIQUE\n);",
             color="#693"];
    }

    subgraph cluster_avro {
        label="Avro";
        color="#d63"; fontcolor="#d63"; style="rounded";
        avro [label="{\n  \"type\": \"record\",\n  \"name\": \"User\",\n  \"fields\": [\n    {\"name\":\"id\",\"type\":\"string\"},\n    {\"name\":\"name\",\n     \"type\":[\"null\",\"string\"]},\n    {\"name\":\"email\",\"type\":\"string\"}\n  ]\n}",
              color="#d63"];
    }

    subgraph cluster_proto {
        label="Protobuf (proto3)";
        color="#639"; fontcolor="#639"; style="rounded";
        proto [label="message User {\n  string id    = 1;\n  string name  = 2;\n  string email = 3;\n}",
               color="#639"];
    }

    logical -> json   [color="#369"];
    logical -> sql    [color="#693"];
    logical -> avro   [color="#d63"];
    logical -> proto  [color="#639"];
}

Related notes

DynamoDB — schemaless storage shifts validation to the application layer
GraphQL — typed schema as the API contract, with introspection
Design-driven APIs — schema-first contracts and code generation
GPT-4o structured output — JSON Schema as an LLM constraint
Food ontology — modeling entities across representation choices

Postscript (2026)

Ten years on, the multi-format schema problem has only intensified. JSON Schema 2020-12 is the de-facto draft, and OpenAPI 3.1 finally aligns its schema dialect with it — eliminating a decade of near-but-not-quite incompatibility. For event streams, schema registries (Confluent, AWS Glue Schema Registry) now enforce compatibility rules at produce-time, treating Avro and Protobuf schemas as first-class artifacts with versioned evolution. Buf has displaced protoc for most teams, adding lint rules and breaking-change detection that the original toolchain never had. The dataLayer pattern itself remains JSON-typed and loosely validated, but Server-Side GTM and consent-mode v2 have pushed teams toward declaring dataLayer contracts in TypeScript or JSON Schema and validating at the edge before forwarding to vendors.
