JavaScript AST Analysis
Table of Contents
1. Overview
Abstract Syntax Trees (ASTs) provide a structured representation of JavaScript source code, enabling static analysis, code metrics collection, and automated transformations.

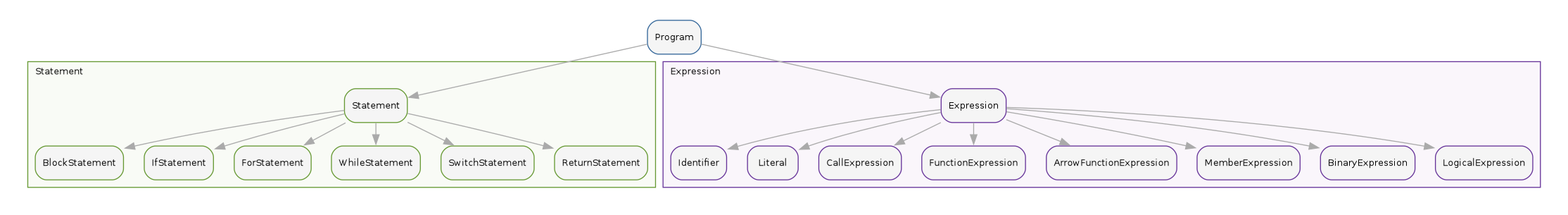

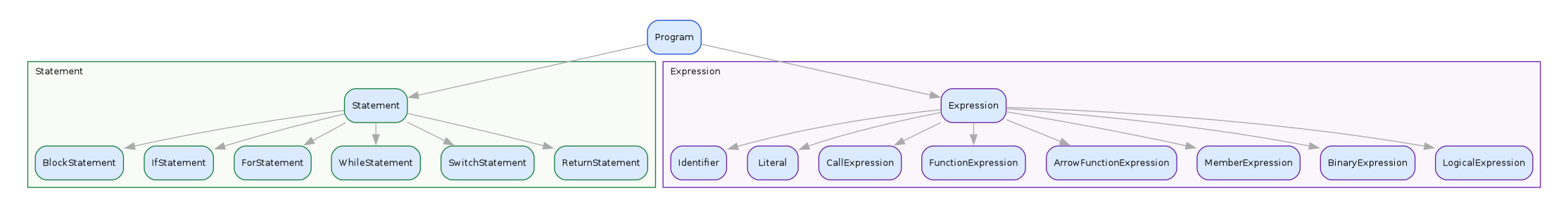

2. ESTree node taxonomy
// JavaScript AST -- ESTree node taxonomy rooted at Program
digraph js_ast_hierarchy {
rankdir=TB;
graph [bgcolor="white", fontname="Helvetica", fontsize=11,
pad="0.3", nodesep="0.3", ranksep="0.35"];
node [shape=box, style="rounded,filled", fontname="Helvetica",
fontsize=10, fillcolor="#dbeafe", color="#888"];
edge [color="#aaa"];
Program [color="#1d4ed8"];
subgraph cluster_stmt {
label="Statement"; labeljust="l";
fontname="Helvetica"; fontsize=10; color="#15803d"; bgcolor="#f0fdf4";
Stmt [label="Statement", color="#15803d"];
Block [label="BlockStatement", color="#15803d"];
If [label="IfStatement", color="#15803d"];
For [label="ForStatement", color="#15803d"];
While [label="WhileStatement", color="#15803d"];
Switch [label="SwitchStatement", color="#15803d"];
Return [label="ReturnStatement", color="#15803d"];
Stmt -> { Block If For While Switch Return };
}
subgraph cluster_expr {
label="Expression"; labeljust="l";
fontname="Helvetica"; fontsize=10; color="#6b21a8"; bgcolor="#f5f3ff";
Expr [label="Expression", color="#6b21a8"];
Identifier [label="Identifier", color="#6b21a8"];
Literal [label="Literal", color="#6b21a8"];
Call [label="CallExpression", color="#6b21a8"];
Function [label="FunctionExpression", color="#6b21a8"];
Arrow [label="ArrowFunctionExpression", color="#6b21a8"];
Member [label="MemberExpression", color="#6b21a8"];
Binary [label="BinaryExpression", color="#6b21a8"];
Logical [label="LogicalExpression", color="#6b21a8"];
Expr -> { Identifier Literal Call Function Arrow Member Binary Logical };
}
Program -> Stmt;
Program -> Expr;
}
3. Background
JavaScript's dynamic nature makes static analysis challenging, yet AST-based tools have become essential for:
- Code linting and style enforcement (JSLint, JSHint, ESLint)
- Minification and bundling (UglifyJS, Closure Compiler)
- Code coverage and complexity analysis
- Automated refactoring and code generation
The ECMAScript specification defines the grammar that AST parsers implement, with the Mozilla Parser API establishing a de facto standard for AST node representation.
4. Key Concepts
4.1. Parser Libraries
4.1.1. Esprima
Checked the esprima.js in jquery/esprima at the commit closest to this note's date (de4ce48, 2012-11-02, package.json version 1.1.0-dev-harmony): esprima.js was 5,445 lines, not "~2000". Corrected the figure; the ES5.1-plus-emerging-Harmony(ES6) characterization matches the dev-harmony version tag and is left as-is.
- Full ECMAScript 5.1 compliance (ES6 support emerging)
- Produces detailed AST with location information
- Supports tolerant parsing mode for error recovery
- ~5400 lines of code, well-documented
var esprima = require('esprima');
var ast = esprima.parse('var x = 42;', { loc: true, range: true });
4.1.2. Acorn
acorn.js in acornjs/acorn at the commit closest to this note's date (237bfbf, 2012-10-02) was 1,347 lines -- close enough to "~1000" to leave as-is, and genuinely smaller than Esprima's 5,445. But the Webpack claim is anachronistic: Tern's package.json depends on acorn (confirmed), while Webpack's own package.json used esprima until commit 592ee90 (2015-03-05, "switched to acorn for it's better es6 support") -- over two years after this note. Dropped the Webpack claim.
- Smaller and faster than Esprima (~1000 lines)
- Plugin architecture for syntax extensions
- Used by projects like Tern
var acorn = require('acorn');
var ast = acorn.parse('var x = 42;', { locations: true });
4.2. AST Node Types
Common node types for statistical analysis:
| Node Type | Description | Complexity Weight |
|---|---|---|
| FunctionDeclaration | Named function definitions | High |
| FunctionExpression | Anonymous/assigned functions | High |
| IfStatement | Conditional branches | Medium |
| ForStatement | Loop constructs | Medium |
| CallExpression | Function invocations | Low |
| MemberExpression | Property access (a.b, a[b]) | Low |
4.3. Code Metrics
4.3.1. Cyclomatic Complexity
Measures the number of independent paths through code:
function calculateCyclomaticComplexity(ast) {
var complexity = 1;
estraverse.traverse(ast, {
enter: function(node) {
switch (node.type) {
case 'IfStatement':
case 'ConditionalExpression':
case 'ForStatement':
case 'WhileStatement':
case 'DoWhileStatement':
case 'CatchClause':
case 'LogicalExpression':
complexity++;
break;
case 'SwitchCase':
if (node.test) complexity++;
break;
}
}
});
return complexity;
}
4.3.2. Halstead Metrics
- Vocabulary: n = n1 + n2 (unique operators + operands)
- Length: N = N1 + N2 (total operators + operands)
- Volume: V = N * log2(n)
- Difficulty: D = (n1/2) * (N2/n2)
4.3.3. Lines of Code (LOC) Variants
- Physical LOC: Raw line count
- Logical LOC: Statement count from AST
- Comment density: Comment nodes / total nodes
5. Implementation
5.1. AST Walker Pattern
var estraverse = require('estraverse');
var stats = {
functions: 0,
variables: 0,
conditionals: 0,
loops: 0,
calls: 0
};
estraverse.traverse(ast, {
enter: function(node, parent) {
switch (node.type) {
case 'FunctionDeclaration':
case 'FunctionExpression':
stats.functions++;
break;
case 'VariableDeclarator':
stats.variables++;
break;
case 'IfStatement':
case 'ConditionalExpression':
stats.conditionals++;
break;
case 'ForStatement':
case 'WhileStatement':
case 'DoWhileStatement':
stats.loops++;
break;
case 'CallExpression':
stats.calls++;
break;
}
}
});
5.2. Dependency Extraction
function extractDependencies(ast) {
var deps = [];
estraverse.traverse(ast, {
enter: function(node) {
if (node.type === 'CallExpression' &&
node.callee.name === 'require' &&
node.arguments[0] &&
node.arguments[0].type === 'Literal') {
deps.push(node.arguments[0].value);
}
}
});
return deps;
}
5.3. Reporting Output
File: app.js ===================================== Physical LOC: 245 Logical LOC: 189 Functions: 12 Cyclomatic: 24 (avg: 2.0 per function) Maintainability: 68.4 Dependencies: ['express', 'lodash', 'async']
6. References
McCabe's citation ("A Complexity Measure", IEEE Transactions on Software Engineering, SE-2(4), Dec 1976, pp. 308-320, DOI 10.1109/tse.1976.233837) and Halstead's citation (Elements of Software Science, Elsevier North-Holland, 1977, ISBN 0-444-00205-7) both match the primary bibliographic record.
- Esprima - ECMAScript Parsing Infrastructure
- Acorn - A small, fast JavaScript parser
- Estraverse - ECMAScript AST Traversal
- Mozilla Parser API
- McCabe, T.J. (1976) "A Complexity Measure" IEEE Transactions on Software Engineering
- Halstead, M.H. (1977) "Elements of Software Science"
7. Notes
- Consider using escomplex for comprehensive complexity metrics
- JSHint/ESLint build upon these AST techniques for linting
- Source maps enable mapping minified code back to original AST locations
- The ESTree specification standardizes AST format across tools
8. Related notes
- JavaScript security – AST-based taint analysis and vulnerability detection sit on the same parser substrate as the metrics work here.
- JavaScript global execution context – Scope/hoisting semantics shape what an AST traversal must track when computing real metrics.
- 2016 developer productivity – Tooling-as-leverage thesis that motivates investing in AST infrastructure rather than ad-hoc regex pipelines.
- Intelligent browser interceptor – Downstream consumer of AST-level rewriting; instrumentation needs the same node-type vocabulary.
9. Postscript (2026)
The 2012 esprima/acorn duopoly has fragmented. Native-Rust parsers (SWC, esbuild, and Oxc) now dominate the build/lint hot path because parsing is the bottleneck once a project crosses ~50k lines, and JS-in-JS parsers can't compete on cold-cache speed. For codemods and structural search, ast-grep has displaced jscodeshift in most workflows by exposing tree-sitter patterns instead of imperative visitors. Source maps v3 remains the de facto debug-info format, but composition through multiple tool layers (TS to SWC to esbuild to minifier) still loses fidelity in practice. Babel persists as the last-mile transform for proposal-stage syntax sugar, while runtime ASTs (the Acorn fork inside Node and Vite's dev server) keep ESTree alive as the lingua franca. The metrics framing in this note still applies – only the parser binaries and the traversal API have changed.
