Evaluating prompts at scale with Prompt Management and Prompt Flows for Amazon Bedrock
Table of Contents
1. Setup
pip3 install boto3 botocore matplotlib -qU --user
3. Configuration
import boto3
import json
import os
import tempfile
from datetime import datetime
# Adjust with your preferred region accordingly:
region = "us-east-1"
# Adjust with your preferred model IDs for invocations and evaluation
# Note some models are only available in certain regions:
modelInvokeId = "amazon.titan-text-premier-v1:0"
modelEvalId = "anthropic.claude-3-sonnet-20240229-v1:0"
# Create AWS service clients
bedrock_agent = boto3.client(service_name="bedrock-agent", region_name=region)
iam = boto3.client('iam')
# Get current user or role information
try:
user_info = iam.get_user()
entity_type = "User"
entity_name = user_info['User']['UserName']
except Exception:
# If get_user() fails, we're probably in a role
role_info = iam.get_role(RoleName=os.environ.get('AWS_EXECUTION_ENV', 'Unknown'))
entity_type = "Role"
entity_name = role_info['Role']['RoleName']
# Create a configuration dictionary
config = {
"region": region,
"modelInvokeId": modelInvokeId,
"modelEvalId": modelEvalId,
"timestamp": datetime.now().isoformat(),
f"current_{entity_type.lower()}": entity_name
}
# Save configuration to a temporary file
with tempfile.NamedTemporaryFile(mode='w', delete=False, suffix='.json') as temp_file:
json.dump(config, temp_file, indent=2)
temp_file_path = temp_file.name
# Print information about the user/role and services
print(f"Configuration saved to: {temp_file_path}")
print(f"Current {entity_type}: {entity_name}")
print(f"Bedrock Agent Client: {bedrock_agent}")
print(f"IAM Client: {iam}")
# You can use these as header values if needed
headers = {
"X-Config-File": temp_file_path,
"X-Entity-Type": entity_type,
"X-Entity-Name": entity_name
}
print(f"Header values: {json.dumps(headers, indent=2)}")
4. Evaluation Template
You're an evaluator for the prompts and answers provided by a generative AI model.
Consider the input prompt in the <input> tags, the output answer in the <output> tags, the prompt evaluation criteria in the <prompt_criteria> tags, and the answer evaluation criteria in the <answer_criteria> tags.
<input>
{{input}}
</input>
<output>
{{output}}
</output>
<prompt_criteria>
- The prompt should be clear, direct, and detailed.
- The question, task, or goal should be well explained and be grammatically correct.
- The prompt is better if containing examples.
- The prompt is better if specifies a role or sets a context.
- The prompt is better if provides details about the format and tone of the expected answer.
</prompt_criteria>
<answer_criteria>
- The answers should be correct, well structured, and technically complete.
- The answers should not have any hallucinations, made up content, or toxic content.
- The answer should be grammatically correct.
- The answer should be fully aligned with the question or instruction in the prompt.
</answer_criteria>
Evaluate the answer the generative AI model provided in the <output> with a score from 0 to 100 according to the <answer_criteria> provided; any hallucinations, even if small, should dramatically impact the evaluation score.
Also evaluate the prompt passed to that generative AI model provided in the <input> with a score from 0 to 100 according to the <prompt_criteria> provided.
Respond only with a JSON having:
- An 'answer-score' key with the score number you evaluated the answer with.
- A 'prompt-score' key with the score number you evaluated the prompt with.
- A 'justification' key with a justification for the two evaluations you provided to the answer and the prompt; make sure to explicitely include any errors or hallucinations in this part.
- An 'input' key with the content of the <input> tags.
- An 'output' key with the content of the <output> tags.
- A 'prompt-recommendations' key with recommendations for improving the prompt based on the evaluations performed.
Skip any preamble or any other text apart from the JSON in your answer.
5. Create Evaluation Prompt
import boto3
import json
import os
from botocore.exceptions import ClientError
# Read region and model ID from environment variables or use defaults
region = os.environ.get('AWS_REGION', 'us-east-1')
modelEvalId = os.environ.get('MODEL_EVAL_ID', 'anthropic.claude-3-sonnet-20240229-v1:0')
# Create Bedrock agent client
bedrock_agent = boto3.client(service_name="bedrock-agent", region_name=region)
# Read the template file
try:
with open('03_ai_prompt_answer_evaluator.tmpl', 'r') as file:
template = file.read()
except FileNotFoundError:
print("Error: Template file '03_ai_prompt_answer_evaluator.tmpl' not found.")
exit(1)
# Create the prompt
try:
response = bedrock_agent.create_prompt(
name="prompt-evaluator",
description="Prompt template for evaluating prompt responses with LLM-as-a-judge",
variants=[
{
"inferenceConfiguration": {
"text": {
"maxTokens": 2000,
"temperature": 0,
}
},
"modelId": modelEvalId,
"name": "variantOne",
"templateConfiguration": {
"text": {
"inputVariables": [
{"name": "input"},
{"name": "output"}
],
"text": template
}
},
"templateType": "TEXT"
}
],
defaultVariant="variantOne"
)
print(json.dumps(response, indent=2, default=str))
promptEvalId = response["id"]
promptEvalArn = response["arn"]
promptEvalName = response["name"]
print(f"Prompt ID: {promptEvalId}")
print(f"Prompt ARN: {promptEvalArn}")
print(f"Prompt Name: {promptEvalName}")
# Create a new version of the prompt
version_response = bedrock_agent.create_prompt_version(promptIdentifier=promptEvalId)
print(json.dumps(version_response, indent=2, default=str))
# Save prompt details for later use
with open('prompt_details.json', 'w') as f:
json.dump({
"promptEvalId": promptEvalId,
"promptEvalArn": promptEvalArn,
"promptEvalName": promptEvalName
}, f)
print("Prompt details saved to 'prompt_details.json'")
except ClientError as e:
error_code = e.response['Error']['Code']
error_message = e.response['Error']['Message']
if error_code == 'ConflictException' and 'already exists' in error_message:
print(f"Error: A prompt with the name 'prompt-evaluator' already exists. Please use a different name or delete the existing prompt.")
else:
print(f"An error occurred while interacting with AWS: {error_code} - {error_message}")
except Exception as e:
print(f"An unexpected error occurred: {str(e)}")
6. Evaluation Flow
6.1. Policy
{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "bedrock.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
6.2. Create Role
import boto3
import json
from botocore.exceptions import ClientError
# Create IAM client
iam = boto3.client('iam')
# Define the role name
role_name = 'AmazonBedrockExecutionRoleForAgentFlowEval'
# Define the trust relationship policy
trust_relationship = {
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Principal": {
"Service": "bedrock.amazonaws.com"
},
"Action": "sts:AssumeRole"
}
]
}
# Define the role policy
role_policy = {
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"bedrock:InvokeModel"
],
"Resource": "*"
}
]
}
try:
# Create the IAM role
create_role_response = iam.create_role(
RoleName=role_name,
AssumeRolePolicyDocument=json.dumps(trust_relationship),
Description='Execution role for Amazon Bedrock Agent Flow'
)
print("Role created successfully:")
print(json.dumps(create_role_response, indent=2, default=str))
# Attach the inline policy to the role
iam.put_role_policy(
RoleName=role_name,
PolicyName='BedrockInvokeModelPolicy',
PolicyDocument=json.dumps(role_policy)
)
print("Policy attached successfully")
# Get the role ARN
role_arn = create_role_response['Role']['Arn']
print(f"Role ARN: {role_arn}")
# Save role details for later use
with open('role_details.json', 'w') as f:
json.dump({
"roleName": role_name,
"roleArn": role_arn
}, f)
print("Role details saved to 'role_details.json'")
except ClientError as e:
if e.response['Error']['Code'] == 'EntityAlreadyExists':
print(f"Error: The role '{role_name}' already exists.")
# If the role exists, we can still get its ARN
try:
existing_role = iam.get_role(RoleName=role_name)
role_arn = existing_role['Role']['Arn']
print(f"Existing Role ARN: {role_arn}")
# Save role details for later use
with open('role_details.json', 'w') as f:
json.dump({
"roleName": role_name,
"roleArn": role_arn
}, f)
print("Existing role details saved to 'role_details.json'")
except ClientError as inner_e:
print(f"Error retrieving existing role: {str(inner_e)}")
else:
print(f"An error occurred: {str(e)}")
except Exception as e:
print(f"An unexpected error occurred: {str(e)}")

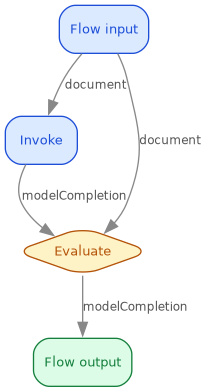

6.3. Flow Definition
{
"nodes": [
{
"name": "Start",
"type": "Input",
"configuration": {
"input": {}
},
"outputs": [
{
"name": "document",
"type": "String"
}
]
},
{
"name": "End",
"type": "Output",
"configuration": {
"output": {}
},
"inputs": [
{
"expression": "$.data",
"name": "document",
"type": "String"
}
]
},
{
"name": "Invoke",
"type": "Prompt",
"configuration": {
"prompt": {
"sourceConfiguration": {
"inline": {
"inferenceConfiguration": {
"text": {
"maxTokens": 2000,
"temperature": 0
}
},
"modelId": "$MODEL_INVOKE_ID",
"templateConfiguration": {
"text": {
"inputVariables": [
{
"name": "input"
}
],
"text": "{{input}}"
}
},
"templateType": "TEXT"
}
}
}
},
"inputs": [
{
"expression": "$.data",
"name": "input",
"type": "String"
}
],
"outputs": [
{
"name": "modelCompletion",
"type": "String"
}
]
},
{
"name": "Evaluate",
"type": "Prompt",
"configuration": {
"prompt": {
"sourceConfiguration": {
"resource": {
"promptArn": "$PROMPT_EVAL_ARN"
}
}
}
},
"inputs": [
{
"expression": "$.data",
"name": "input",
"type": "String"
},
{
"expression": "$.data",
"name": "output",
"type": "String"
}
],
"outputs": [
{
"name": "modelCompletion",
"type": "String"
}
]
}
],
"connections": [
{
"name": "StartToInvoke",
"source": "Start",
"target": "Invoke",
"type": "Data",
"configuration": {
"data": {
"sourceOutput": "document",
"targetInput": "input"
}
}
},
{
"name": "InvokeToEvaluate",
"source": "Invoke",
"target": "Evaluate",
"type": "Data",
"configuration": {
"data": {
"sourceOutput": "modelCompletion",
"targetInput": "output"
}
}
},
{
"name": "StartToEvaluate",
"source": "Start",
"target": "Evaluate",
"type": "Data",
"configuration": {
"data": {
"sourceOutput": "document",
"targetInput": "input"
}
}
},
{
"name": "EvaluateToEnd",
"source": "Evaluate",
"target": "End",
"type": "Data",
"configuration": {
"data": {
"sourceOutput": "modelCompletion",
"targetInput": "document"
}
}
}
]
}
6.4. Create Flow
import boto3
import json
import os
# Read AWS region from environment variable or use a default
region = os.environ.get('AWS_REGION', 'us-east-1')
# Create Bedrock agent client
bedrock_agent = boto3.client(service_name="bedrock-agent", region_name=region)
# Read model ID from environment variable or use a default
modelInvokeId = os.environ.get('MODEL_INVOKE_ID', 'amazon.titan-text-express-v1')
# Read role details
try:
with open('role_details.json', 'r') as f:
role_details = json.load(f)
role_arn = role_details['roleArn']
except FileNotFoundError:
print("Error: 'role_details.json' not found. Please run the script to create the IAM role first.")
exit(1)
# Read prompt details
try:
with open('prompt_details.json', 'r') as f:
prompt_details = json.load(f)
promptEvalArn = prompt_details['promptEvalArn']
except FileNotFoundError:
print("Error: 'prompt_details.json' not found. Please run the script to create the prompt first.")
exit(1)
# Read flow definition
try:
with open('07_prompt_eval_flow_defn.json', 'r') as f:
flow_definition = json.load(f)
except FileNotFoundError:
print("Error: '07_prompt_eval_flow_defn.json' not found. Please make sure the flow definition file exists.")
exit(1)
# Replace placeholders in the flow definition
def replace_placeholders(obj, replacements):
if isinstance(obj, dict):
for k, v in obj.items():
if isinstance(v, (dict, list)):
replace_placeholders(v, replacements)
elif isinstance(v, str):
for placeholder, value in replacements.items():
if v == placeholder:
obj[k] = value
elif isinstance(obj, list):
for i, v in enumerate(obj):
if isinstance(v, (dict, list)):
replace_placeholders(v, replacements)
elif isinstance(v, str):
for placeholder, value in replacements.items():
if v == placeholder:
obj[i] = value
replacements = {
"$MODEL_INVOKE_ID": modelInvokeId,
"$PROMPT_EVAL_ARN": promptEvalArn
}
replace_placeholders(flow_definition, replacements)
# Create the flow
try:
response = bedrock_agent.create_flow(
name="prompt-eval-flow",
description="Prompt Flow for evaluating prompts with LLM-as-a-judge.",
executionRoleArn=role_arn,
definition=flow_definition
)
print("Flow created successfully:")
print(json.dumps(response, indent=2, default=str))
flowEvalId = response["id"]
flowEvalArn = response["arn"]
flowEvalName = response["name"]
# Save flow details for later use
with open('flow_details.json', 'w') as f:
json.dump({
"flowId": flowEvalId,
"flowArn": flowEvalArn,
"flowName": flowEvalName
}, f)
print("Flow details saved to 'flow_details.json'")
except boto3.exceptions.Boto3Error as e:
print(f"An error occurred while interacting with AWS: {str(e)}")
except Exception as e:
print(f"An unexpected error occurred: {str(e)}")
7. Prepare and Version the Flow
7.1. Prepare the Flow
import boto3
import json
import time
# Assuming you're using the same region as before
region = "us-east-1"
bedrock_agent = boto3.client(service_name="bedrock-agent", region_name=region)
# Read flow details
with open('flow_details.json', 'r') as f:
flow_details = json.load(f)
flow_id = flow_details['flowId']
try:
response = bedrock_agent.prepare_flow(
flowIdentifier=flow_id
)
print("Flow preparation started:")
print(json.dumps(response, indent=2, default=str))
except Exception as e:
print(f"An error occurred while preparing the flow: {str(e)}")
# Poll the flow status until it's prepared
max_attempts = 30
attempts = 0
while attempts < max_attempts:
try:
response = bedrock_agent.get_flow(
flowIdentifier=flow_id
)
status = response['status']
print(f"Current flow status: {status}")
if status == 'Prepared':
print("Flow is prepared and ready to use!")
break
elif status == 'Failed':
print("Flow preparation failed. Check the AWS console for more details.")
break
except Exception as e:
print(f"An error occurred while checking flow status: {str(e)}")
break
time.sleep(10) # Wait for 10 seconds before checking again
attempts += 1
if attempts == max_attempts:
print("Flow preparation timed out. Please check the AWS console for more information.")
7.2. Create Flow Version
import boto3
import json
region = "us-east-1"
bedrock_agent = boto3.client(service_name="bedrock-agent", region_name=region)
# Read flow details
with open('flow_details.json', 'r') as f:
flow_details = json.load(f)
flow_id = flow_details['flowId']
try:
response = bedrock_agent.create_flow_version(
flowIdentifier=flow_id
)
print("Flow version created:")
print(json.dumps(response, indent=2, default=str))
# Update flow details with the new version
flow_details['flowVersion'] = response['version']
with open('flow_details.json', 'w') as f:
json.dump(flow_details, f, indent=2)
print("Flow details updated with new version.")
except Exception as e:
print(f"An error occurred while creating the flow version: {str(e)}")
7.3. Create Flow Alias
import boto3
import json
region = "us-east-1"
bedrock_agent = boto3.client(service_name="bedrock-agent", region_name=region)
# Read flow details
with open('flow_details.json', 'r') as f:
flow_details = json.load(f)
flow_id = flow_details['flowId']
flow_name = flow_details['flowName']
flow_version = flow_details.get('flowVersion', '1') # Default to '1' if not set
try:
response = bedrock_agent.create_flow_alias(
flowIdentifier=flow_id,
name=flow_name,
description=f"Alias for {flow_name}",
routingConfiguration=[
{
"flowVersion": flow_version
}
]
)
print("Flow alias created:")
print(json.dumps(response, indent=2, default=str))
# Update flow details with the alias information
flow_details['flowAliasId'] = response['id']
flow_details['flowAliasArn'] = response['arn']
with open('flow_details.json', 'w') as f:
json.dump(flow_details, f, indent=2)
print("Flow details updated with alias information.")
except Exception as e:
print(f"An error occurred while creating the flow alias: {str(e)}")
8. List of Prompts and Prompt Flows
- Prompts:
- Evaluation Prompt: "prompt-evaluator" (Created in 04_create_evaluation_prompt.py)
- Prompt Flows:
- Simple Prompt Evaluation Flow: "prompt-eval-flow" (Created in 08_create_flow.py)
9. Evaluation
9.1. Good Prompt
You are an expert data scientist with years of experience in machine learning and statistical analysis. A junior data analyst has approached you for help with a problem they're facing. They have a dataset of customer information and purchase history, and they want to predict future purchasing behavior.
Please provide a detailed, step-by-step guide on how to approach this problem. Include the following in your response:
1. Initial data exploration steps
2. Feature engineering suggestions
3. Potential machine learning models to consider
4. Model evaluation metrics
5. Tips for interpreting the results
Use clear, concise language and explain any technical terms you use. Your goal is to educate the junior analyst and give them a solid foundation to start their project.
9.2. Bad Prompt
Tell me about machine learning.
9.3. Prompts Evaluation
import boto3
import json
import time
from botocore.exceptions import ClientError
# Assuming you're using the same region as before
region = "us-east-1"
bedrock_agent_runtime = boto3.client(service_name='bedrock-agent-runtime', region_name=region)
# Read flow details
with open('flow_details.json', 'r') as f:
flow_details = json.load(f)
flow_id = flow_details['flowId']
flow_alias_id = flow_details.get('flowAliasId') # Use the alias if available
def invoke_flow(input_text, timeout=300): # 5 minutes timeout
try:
response = bedrock_agent_runtime.invoke_flow(
flowIdentifier=flow_id,
flowAliasIdentifier=flow_alias_id,
inputs=[
{
"content": {
"document": input_text
},
"nodeName": "Start",
"nodeOutputName": "document"
}
]
)
event_stream = response["responseStream"]
result = ""
start_time = time.time()
for event in event_stream:
if time.time() - start_time > timeout:
print(f"Flow invocation timed out after {timeout} seconds.")
return None
if "flowOutputEvent" in event:
result += event["flowOutputEvent"]["content"]["document"]
return json.loads(result)
except ClientError as e:
error_code = e.response['Error']['Code']
error_message = e.response['Error']['Message']
print(f"AWS Error: {error_code} - {error_message}")
return None
except Exception as e:
print(f"An unexpected error occurred: {str(e)}")
return None
def read_prompt(file_path):
with open(file_path, 'r') as file:
return file.read().strip()
# Test the flow with good and bad prompts
good_prompt = read_prompt('prompts/evaluation_good_prompt.tmpl')
bad_prompt = read_prompt('prompts/evaluation_bad_prompt.tmpl')
for prompt_type, prompt in [("Good", good_prompt), ("Bad", bad_prompt)]:
print(f"\nTesting {prompt_type} Prompt:")
print("-" * 40)
print(f"Prompt: {prompt[:100]}...") # Print first 100 characters of the prompt
print("Invoking flow... This may take a few minutes.")
result = invoke_flow(prompt)
if result:
print("\nFlow invocation result:")
print(f"Prompt Score: {result.get('prompt-score', 'N/A')}")
print(f"Answer Score: {result.get('answer-score', 'N/A')}")
print(f"\nJustification: {result.get('justification', 'N/A')[:200]}...") # Print first 200 characters
print(f"\nPrompt Recommendations: {result.get('prompt-recommendations', 'N/A')[:200]}...") # Print first 200 characters
else:
print("Failed to get a result from the flow.")
print("\n" + "=" * 50 + "\n")
