TOC rail + highlighter — data flow, boundaries, and the implicit org→html contract

1. 1. What this note settles
2. 2. Data flow
3. 3. User flow — from click to highlight
4. 4. Boundaries — who owns what
- 4.1. 4.1 Reducer ownership — what it must NOT touch
- 4.2. 4.2 Adapter ownership — what it must NOT do
5. 5. The implicit org→html contract
- 5.1. 5.1 Relied-on guarantees
- 5.2. 5.2 Must-not-rely-on guarantees
6. 6. Bundle strategy
7. 7. Implementation sketch (follow-on, not this note)
8. 8. Refutation
9. Cross-references

1. 1. What this note settles

The right-rail TOC ships (site/static/css/style.css, gated by body:has(#table-of-contents) at ≥1024px). The next feature is the highlighter — as the reader scrolls, mark the current section in the rail. The reducer contract for it landed independently in docs/toc-rail-reducer-contract.org and a JS mirror at experiments/toc-nav-simulator/reducer.mjs; the head-less simulator already grades that reducer against real org-publish HTML fixtures.

What is not settled and this note settles:

Data flow between browser events, geometry reads, the pure reducer, and DOM mutations.
Boundary responsibilities — what the reducer owns, what the browser adapter owns, what the CSS owns, what the publisher owns.
The implicit contract the org→html exporter provides — the guarantees the highlighter relies on, and the guarantees the highlighter must not rely on.
Bundle strategy — extend the existing tracker.js so the highlighter ships with the ambient page load, without a new <script> include touched into every template.

The reducer itself is done. This is the wiring diagram + boundary spec + bundle decision.

2. 2. Data flow

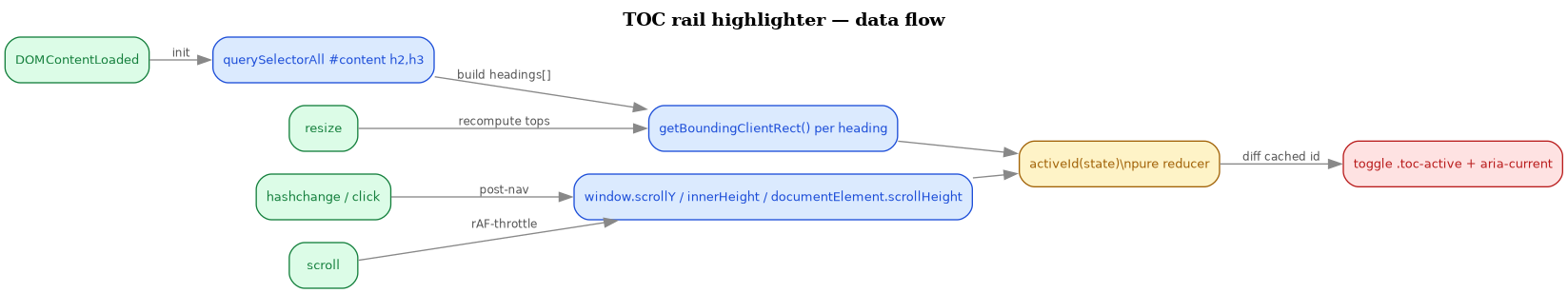

Six events, one pure reducer, one DOM effect. The reducer is a function (state, event) → state; the adapter is what turns browser noise into events and what turns state changes into class toggles.

digraph DataFlow {
  rankdir=LR;
  bgcolor="#f8fafc";
  labelloc="t"; label=<<b>TOC rail highlighter — data flow</b>>;
  node [shape=box, style="rounded,filled", fontname="Helvetica", fontsize=11];
  edge [fontname="Helvetica", fontsize=9, color="#475569"];

  // Browser events
  "DOMContentLoaded"  [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];
  "scroll"            [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];
  "resize"            [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];
  "hashchange / click" [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];

  // Adapter reads
  "querySelectorAll #content h2,h3" [fillcolor="#dbeafe", color="#1d4ed8", fontcolor="#1d4ed8"];
  "getBoundingClientRect() per heading" [fillcolor="#dbeafe", color="#1d4ed8", fontcolor="#1d4ed8"];
  "window.scrollY / innerHeight / documentElement.scrollHeight" [fillcolor="#dbeafe", color="#1d4ed8", fontcolor="#1d4ed8"];

  // Reducer boundary
  "activeId(state)\\npure reducer" [fillcolor="#fef3c7", color="#a16207", fontcolor="#a16207", shape=box, style="rounded,filled,bold"];

  // DOM mutation
  "toggle .toc-active + aria-current" [fillcolor="#fecaca", color="#b91c1c", fontcolor="#b91c1c"];

  "DOMContentLoaded" -> "querySelectorAll #content h2,h3" [label="init"];
  "querySelectorAll #content h2,h3" -> "getBoundingClientRect() per heading" [label="build headings[]"];
  "resize" -> "getBoundingClientRect() per heading" [label="recompute tops"];
  "scroll" -> "window.scrollY / innerHeight / documentElement.scrollHeight" [label="rAF-throttle"];
  "hashchange / click" -> "window.scrollY / innerHeight / documentElement.scrollHeight" [label="post-nav"];
  "getBoundingClientRect() per heading" -> "activeId(state)\\npure reducer";
  "window.scrollY / innerHeight / documentElement.scrollHeight" -> "activeId(state)\\npure reducer";
  "activeId(state)\\npure reducer" -> "toggle .toc-active + aria-current" [label="diff cached id"];
}

The reducer inputs are five numbers and one array: scrollY, headerH, viewportH, documentH, headings[]=. Output is one string (activeId) or null. Nothing else crosses the boundary in either direction.

3. 3. User flow — from click to highlight

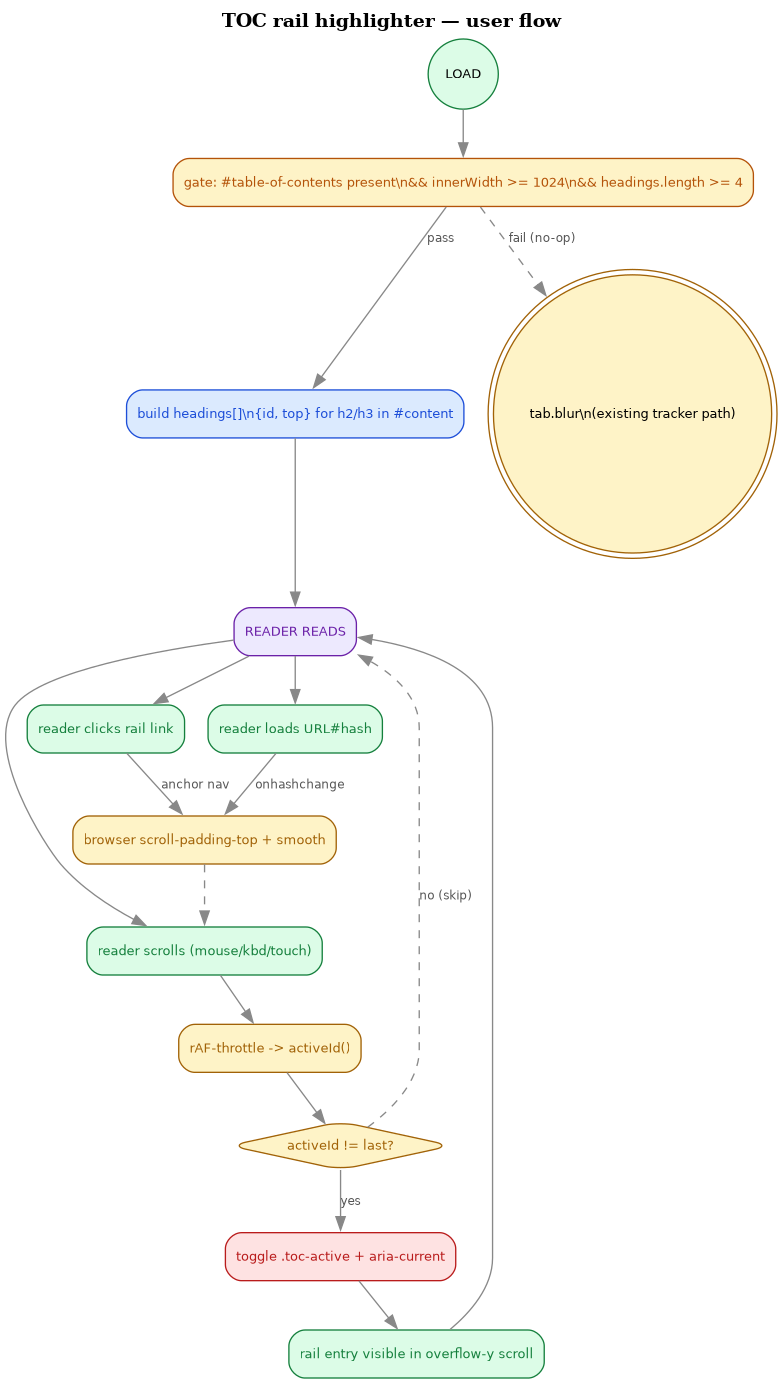

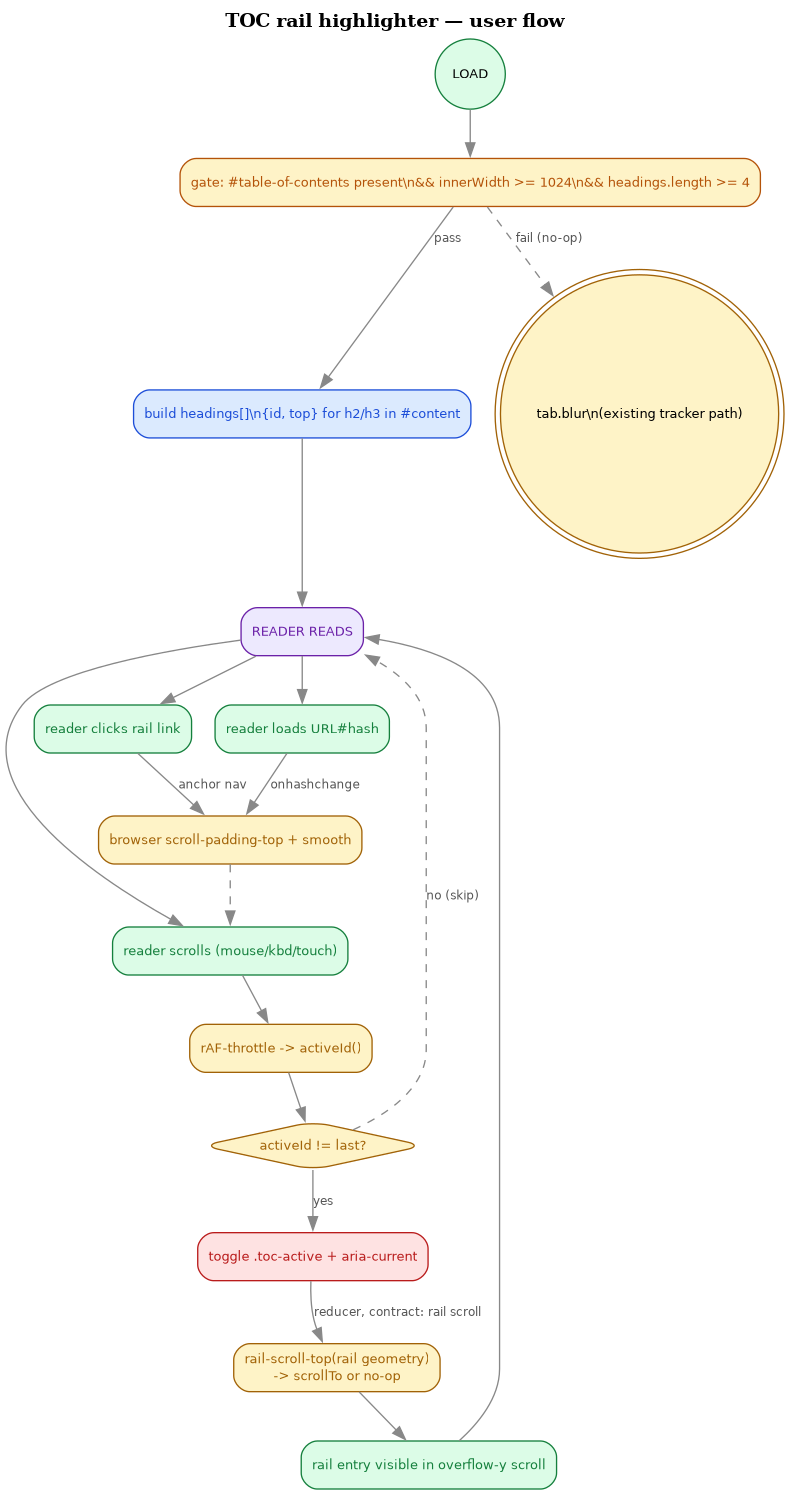

Two entry points: passive scroll, and explicit navigation. Both go through the same reducer.

digraph UserFlow {
  rankdir=TB;
  bgcolor="#f8fafc";
  labelloc="t"; label=<<b>TOC rail highlighter — user flow</b>>;
  node [shape=box, style="rounded,filled", fontname="Helvetica", fontsize=11];
  edge [fontname="Helvetica", fontsize=9, color="#475569"];

  "PAGE LOAD" [shape=circle, fillcolor="#ecfccb", color="#3f6212", label="LOAD"];

  "gate: #table-of-contents present\\n&& innerWidth >= 1024\\n&& headings.length >= 4"
    [fillcolor="#e2e8f0", color="#334155", fontcolor="#334155"];

  "build headings[]\\n{id, top} for h2/h3 in #content"
    [fillcolor="#dbeafe", color="#1d4ed8", fontcolor="#1d4ed8"];

  "READER READS" [shape=box, style="rounded,filled", fillcolor="#f3e8ff", color="#7e22ce", fontcolor="#7e22ce"];

  "reader scrolls (mouse/kbd/touch)" [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];
  "reader clicks rail link"          [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];
  "reader loads URL#hash"            [fillcolor="#ecfccb", color="#3f6212", fontcolor="#3f6212"];

  "rAF-throttle -> activeId()" [fillcolor="#fef3c7", color="#a16207", fontcolor="#a16207"];
  "browser scroll-padding-top + smooth" [fillcolor="#fef3c7", color="#a16207", fontcolor="#a16207"];

  "activeId != last?" [shape=diamond, fillcolor="#fff", color="#475569", fontcolor="#475569"];
  "toggle .toc-active + aria-current" [fillcolor="#fecaca", color="#b91c1c", fontcolor="#b91c1c"];
  "rail entry visible in overflow-y scroll" [fillcolor="#ccfbf1", color="#0f766e", fontcolor="#0f766e"];

  "END" [shape=doublecircle, fillcolor="#fef3c7", color="#a16207", label="tab.blur\\n(existing tracker path)"];

  "PAGE LOAD" -> "gate: #table-of-contents present\\n&& innerWidth >= 1024\\n&& headings.length >= 4";
  "gate: #table-of-contents present\\n&& innerWidth >= 1024\\n&& headings.length >= 4" -> "build headings[]\\n{id, top} for h2/h3 in #content" [label="pass"];
  "gate: #table-of-contents present\\n&& innerWidth >= 1024\\n&& headings.length >= 4" -> "END" [label="fail (no-op)", style=dashed];
  "build headings[]\\n{id, top} for h2/h3 in #content" -> "READER READS";
  "READER READS" -> "reader scrolls (mouse/kbd/touch)";
  "READER READS" -> "reader clicks rail link";
  "READER READS" -> "reader loads URL#hash";
  "reader clicks rail link" -> "browser scroll-padding-top + smooth" [label="anchor nav"];
  "reader loads URL#hash" -> "browser scroll-padding-top + smooth" [label="onhashchange"];
  "browser scroll-padding-top + smooth" -> "reader scrolls (mouse/kbd/touch)" [style=dashed];
  "reader scrolls (mouse/kbd/touch)" -> "rAF-throttle -> activeId()";
  "rAF-throttle -> activeId()" -> "activeId != last?";
  "activeId != last?" -> "toggle .toc-active + aria-current" [label="yes"];
  "activeId != last?" -> "READER READS" [label="no (skip)", style=dashed];
  "toggle .toc-active + aria-current" -> "rail entry visible in overflow-y scroll";
  "rail entry visible in overflow-y scroll" -> "READER READS";
}

The "activeId != last" diamond matters. Without diff-caching, every rAF tick writes to the DOM, which is a 60Hz style recalc for zero visual change. With the cache the write happens exactly at section boundaries.

4. 4. Boundaries — who owns what

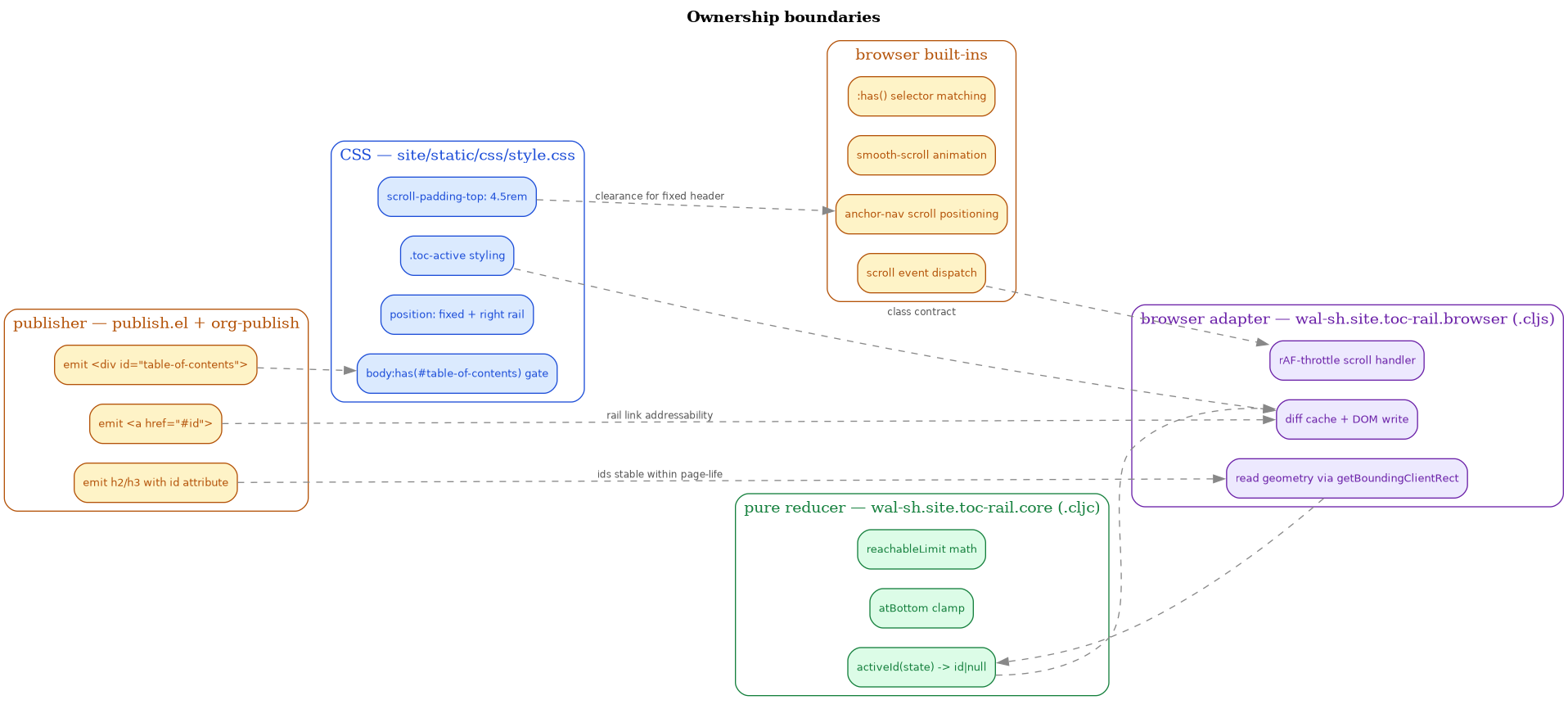

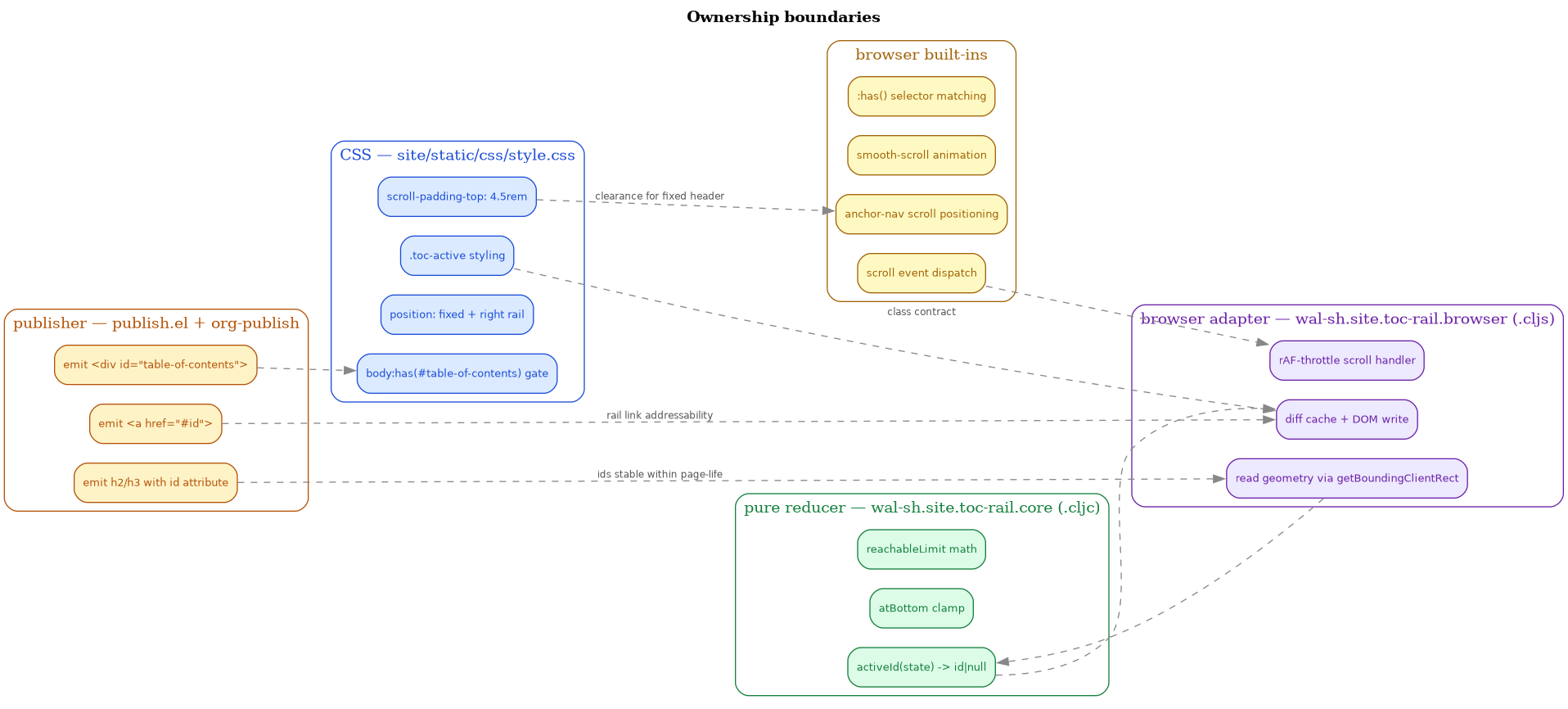

Five actors. Each owns a strictly non-overlapping surface. The whole feature works because none of them reach across into another's surface.

digraph Boundaries {
  rankdir=LR;
  bgcolor="#f8fafc";
  labelloc="t"; label=<<b>Ownership boundaries</b>>;
  node [shape=box, style="rounded,filled", fontname="Helvetica", fontsize=10];
  edge [fontname="Helvetica", fontsize=8, color="#475569", style=dashed];

  // Publisher
  subgraph cluster_pub {
    label="publisher — publish.el + org-publish"; color="#3f6212"; fontcolor="#3f6212"; style=rounded; bgcolor="#ecfccb";
    "emit <div id=\"table-of-contents\">";
    "emit <a href=\"#id\">";
    "emit h2/h3 with id attribute";
  }

  // CSS
  subgraph cluster_css {
    label="CSS — site/static/css/style.css"; color="#7e22ce"; fontcolor="#7e22ce"; style=rounded; bgcolor="#f3e8ff";
    "body:has(#table-of-contents) gate";
    "position: fixed + right rail";
    "scroll-padding-top: 4.5rem";
    ".toc-active styling";
  }

  // Reducer
  subgraph cluster_reducer {
    label="pure reducer — wal-sh.site.toc-rail.core (.cljc)"; color="#a16207"; fontcolor="#a16207"; style=rounded; bgcolor="#fef3c7";
    "activeId(state) -> id|null";
    "atBottom clamp";
    "reachableLimit math";
  }

  // Browser adapter
  subgraph cluster_adapter {
    label="browser adapter — wal-sh.site.toc-rail.browser (.cljs)"; color="#1d4ed8"; fontcolor="#1d4ed8"; style=rounded; bgcolor="#dbeafe";
    "read geometry via getBoundingClientRect";
    "rAF-throttle scroll handler";
    "diff cache + DOM write";
  }

  // Browser (built-in)
  subgraph cluster_browser {
    label="browser built-ins"; color="#334155"; fontcolor="#334155"; style=rounded; bgcolor="#e2e8f0";
    "scroll event dispatch";
    "anchor-nav scroll positioning";
    "smooth-scroll animation";
    ":has() selector matching";
  }

  "emit h2/h3 with id attribute" -> "read geometry via getBoundingClientRect" [label="ids stable within page-life"];
  "emit <a href=\"#id\">" -> "diff cache + DOM write" [label="rail link addressability"];
  "emit <div id=\"table-of-contents\">" -> "body:has(#table-of-contents) gate";
  "scroll-padding-top: 4.5rem" -> "anchor-nav scroll positioning" [label="clearance for fixed header"];
  ".toc-active styling" -> "diff cache + DOM write" [label="class contract"];
  "scroll event dispatch" -> "rAF-throttle scroll handler";
  "read geometry via getBoundingClientRect" -> "activeId(state) -> id|null";
  "activeId(state) -> id|null" -> "diff cache + DOM write";
}

Reading the arrows: every cross-boundary edge is a single-direction contract, and each is small enough to state in one sentence. If a future change forces an arrow to reverse, it's a spec-bump signal.

4.1. 4.1 Reducer ownership — what it must NOT touch

Forbidden	Why
`document`, `window`, `Math.random`	Purity requirement — the reducer is graded against a JSON oracle on the JVM
`setTimeout`, `requestAnimationFrame`	Timing is the adapter's problem
`IntersectionObserver`	Alternative algorithm; the reducer decides from geometry, not from intersection events
Any mutable state outside the `state` arg	Idempotency — same input, same output, always

4.2. 4.2 Adapter ownership — what it must NOT do

Forbidden	Why
Decide which heading is active	That is the reducer's one job
Modify heading content or ids	Publisher-owned; adapter only READS
Style the `.toc-active` class	CSS-owned; adapter only toggles the class name
Fire tracker events	Separate concern — the tracker.js observer can pick up the class change via its own IntersectionObserver if wanted

5. 5. The implicit org→html contract

Six guarantees the highlighter relies on, and two the highlighter must NOT rely on. These aren't in the org manual as a "contract" per se — they're what org-export-html observably does, and the gap between "observable" and "guaranteed" is where the risk lives.

5.1. 5.1 Relied-on guarantees

#	The exporter guarantees	Highlighter use
G1	`#+OPTIONS: toc:t` emits `<div id`"table-of-contents"><div id="text-table-of-contents"><ul>=	Gate: presence check
G2	Every heading gets an `id` attribute	`headings` array construction
G3	The `<ul>` inside `#text-table-of-contents` has `<a href`"#<id>">= entries matching heading ids	Class-toggle target
G4	Heading order in the ToC matches DOM order	`activeId` scan invariant
G5	`:CUSTOM_ID:` on a heading overrides the random id	Stable-id path (see G7)
G6	The publisher's canonical-URL filter rewrites `.html` paths but does NOT touch `#hash` fragments	Rail anchors survive canonicalization

5.2. 5.2 Must-not-rely-on guarantees

#	The exporter DOES NOT guarantee	Consequence
G7	Ids are stable across rebuilds — `org-export-format-reference` generates random 7-hex-digit ids per export (three exports of the same file produce three disjoint id sets, verified in `experiments/toc-nav-simulator/`)	Highlighter reads DOM at load time; never caches ids across page-loads. Shared `#hash` URLs break on republish unless the source uses `:CUSTOM_ID:` on every heading.
G8	Heading `top` coordinates are stable across viewport widths or font-loading	Adapter recomputes on `resize` AND on `load` (after web-fonts settle) rather than trusting a single `DOMContentLoaded` read

The G7 finding is why the reducer takes headings as an argument rather than computing them from a URL or a manifest — the DOM is the only source of truth for what ids exist right now.

6. 6. Bundle strategy

The site loads five sitewide JS bundles today (per docs/views-projection.org §4): tracker.js · page-tags.js · web-vitals-init.js · bot-signal.js · global-pollution.js · event-pixel.js. Any of them could host the highlighter. Options:

6.1. 6.1 Extend tracker.js (recommended)

Add wal-sh.site.toc-rail.core (.cljc, pure reducer, 77-line port of experiments/toc-nav-simulator/reducer.mjs) and wal-sh.site.toc-rail.browser (.cljs, ~50 lines) to the :site-tracker shadow-cljs build.
The adapter reuses wal-sh.site.tracker.browser' existing rAF-throttle util (already handles scroll for scroll.depth).
Guard: gate the toc-rail.browser/init! call on (and (.querySelector js/document "#table-of-contents") (> (.-innerWidth js/window) 1024))=, so pages without a TOC pay no cost.
Bundle-size cost: ~2 KB advanced-compiled (function-level) added to the ~130 KB tracker.js. No new <script> tag anywhere.

6.2. 6.2 New `toc-rail.js` bundle (rejected)

Requires editing every template's postamble to add a new <script src"/static/js/cljs/toc-rail.js">= include, OR touching publish.el to inject it into the exported HTML head.
Adds an HTTP round-trip on every page load.
The only reason to prefer it: hard isolation from the tracker's event vocabulary. But the two are ergonomically related — the next feature after "highlight current section" is "fire a section.dwell event when a section is on the reading line ≥30s," which is already the tracker's shape.

6.3. 6.3 Piggyback on page-tags.js (rejected)

page-tags.js renders the keyword-chip footer; unrelated concern.
Would couple two independent UI behaviors in one bundle without a shared abstraction.

7. 7. Implementation sketch (follow-on, not this note)

Three files land, all in the :site-tracker shadow build:

src/wal_sh/site/toc_rail/core.cljc      ; ~80 lines, port of reducer.mjs
src/wal_sh/site/toc_rail/browser.cljs   ; ~60 lines, adapter
test/wal_sh/site/toc_rail/core_test.cljc ; grades against fixtures/geometry.json

core.cljc exposes (active-id state) and (reachable-limit state) as pure functions. Test harness reads experiments/toc-nav-simulator/fixtures/geometry.json and asserts the CLJC output byte-matches the JS oracle's output for every step of every scenario.

browser.cljs wires:

init! — gate + build headings array + attach listeners.
on-scroll — rAF-throttle → (active-id ...) → diff-cache → DOM write.
on-resize — recompute headings[].top and documentH.
on-load — one delayed recompute after web-fonts settle, to catch G8.

Ledger block on land, with the reducer contract's own version as the pinned dependency.

8. 8. Refutation

The claim is that this reducer + adapter, added to tracker.js with zero template touches, produces a working highlighter with no regression on any current page. It fails if:

The reducer disagrees with reducer.mjs on any fixture scenario (grading harness catches this in CI).
Rail links stop scrolling to the right position — implicates scroll-padding-top interacting with the class-toggle timing; test by clicking every link on a long note.
Pages without a TOC take a measurable perf hit — the gate at init! should return in <1ms; measure with performance.now() in dev.
The tracker's existing scroll.depth event count changes — the two handlers share the rAF-throttle util; a bug here shows up as event-count drift in the daily snapshot.
On a page with :CUSTOM_ID: on every heading, the highlighter still misses one anchor — implicates G4 (heading order in ToC vs. DOM order). This is the one that would be a real spec bug.

9. Cross-references

docs/toc-rail-reducer-contract.org — the ClojureScript reducer contract this note wraps
experiments/toc-nav-simulator/README.org — the JS mirror + real org-publish fixtures + the G7 anchor-instability finding
docs/views-projection.org — bundle-per-page map that §6.1 references
tracker-rebuild-spec — the tracker whose rAF-throttle util the adapter reuses
site/static/css/style.css — the rail CSS (:has() gate + fixed positioning + scroll-padding-top)
